RF Coaxial Cable

Flexible RG214 Coax Cable Double shielded with Black PVC Jacket

PN: RG214
PRODUCT OVERVIEW
DOWNLOADS
  • Data Sheet [PDF]
    • PRODUCT SPECIFICATIONS

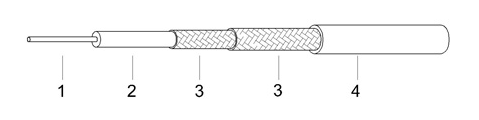

    Construction Specification
    Item Material Diamenter(mm)
    Inner Conductor Silver Played Copper 7x0.752
    Dielectric PE 7.24
    Outer Conductor Double Silver Plated Copper Braid Nom.8.40
    Jacket Black PVC 10.8

    Electrical Characteristics
    Capacitance (Pf/M)   101
    Impedance (Ohm)   50
    Velocity(%)   66
    Max. Oper. Voltage (KVMS)   3.7
    Max. Oper. Frequency (MHz)   11000
    Operating Temp. (℃)   -25 to 70
    Bending Radius(mm)   40
    RoHS   Compliant

    Attenuation (Typical)
    Frequency (MHz)   Attenuation (dB/100m)
    100   0.066
    400   0.141
    1000   0.240
    3000   0.466
    5000   0.646
    11000   1.109
