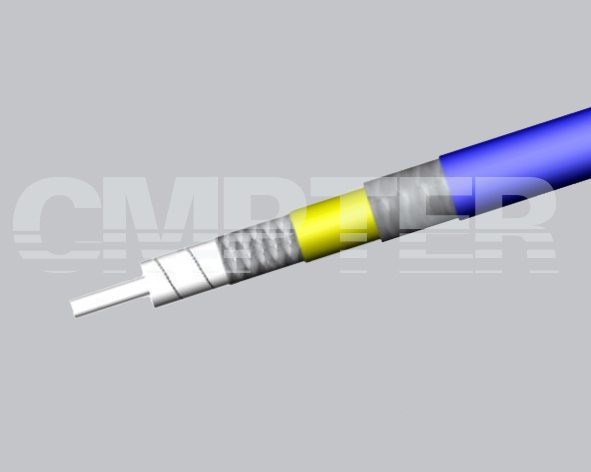

Low Loss High Performance RF cable CTA-485

PN: CTA-485
485-1
PRODUCT OVERVIEW
CTA-485 Features:

  1. Test rack systems
  2. Vector network analyzers
  3. Scalar network analyzers
  4. Antenna ranges
  5. Automated test equipment
  6. Electromagnetic compliance testing
  7. Wireless telecommunication module testing
DOWNLOADS
PRODUCT SPECIFICATIONS
Construction Specification
Item   Diamenter(mm)
Out Jackt   4.85mm
Shielding Efficiency(dB)   >100
Min. Bending Radius Static(mm) 25.00
Velocity(%)    70%
Temp(℃)   -55 ~ 150

Attenuation (@25℃&VSWR=1.0) and transmission power(@40℃&One standard atmosphere)
Frequency (GHz) dB/100M Average Power (KW)
1 40.00 0.539
2 59.00 0.363
3 74.00 0.285
6 112.00 0.180
8 113.00 0.152
12 172.00 0.117
18 224.00 0.088
26.8 290.00 0.065
