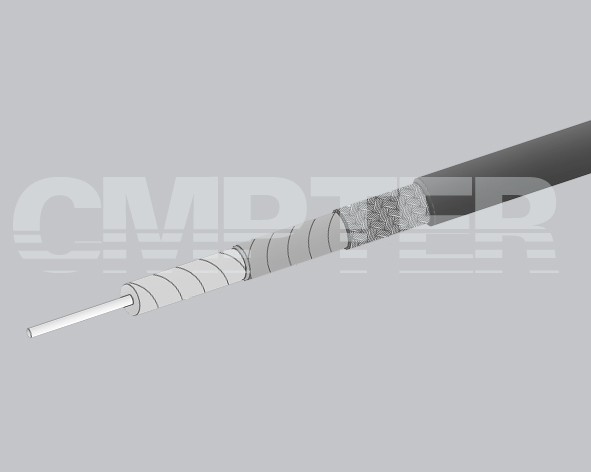

Low Loss Phase Stable High Frequency Cable CTFB-800
PRODUCT OVERVIEW
CTFB-800 Typical Application:
- Military Radar
- Electronic Warfare
- Shipboard System
- Airborne Platform
- System Interconnection
- Radio Station
DOWNLOADS
PRODUCT SPECIFICATIONS
| Construction Specification |
|
| Item |
|
Diamenter(mm) |
| Out Jackt |
|
7.80mm |
| Shielding Efficiency(dB) |
|
>90 |
| Min. Bending Radius Static(mm) |
35.00 |
| Velocity(%) |
|
83% |
| Temp(℃) |
|
-55 ~ 165 |
| Attenuation (@25℃&VSWR=1.0) and transmission power(@40℃&One standard atmosphere) |
| Frequency (MHz) |
dB/100M |
Average Power (KW) |
| 300 |
8.00 |
3.341 |
| 1000 |
14.80 |
1.182 |
| 2000 |
21.10 |
1.269 |
| 4000 |
30.20 |
0.886 |
| 6000 |
37.30 |
0.716 |
| 8000 |
43.40 |
0.615 |
| 10000 |
48.90 |
0.547 |
| 12000 |
53.90 |
0.496 |
| 14000 |
58.60 |
0.456 |
| 16000 |
63.00 |
0.425 |
| 18000 |
67.10 |
0.398 |
Note: K1=0.45637997, K2=0.0003280 Formulas=K1*√FMhz+K2*FMHz
