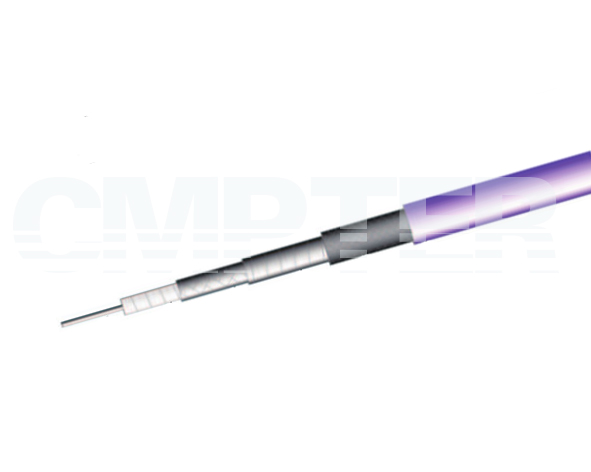

mBend High strength Phase RF Flexible cable MIB-360, DC to 26.5GHz
PRODUCT OVERVIEW
- Applicable in frequencies up to 26.5GHz
-
- 100% tested preassembled coaxial cable assembly
-
- Excelent bending phase, amplitude stabilit
DOWNLOADS
PRODUCT SPECIFICATIONS
| Construction Specification |
|
| Item |
|
Diamenter(mm) |
| Outer Jacket |
|
3.61mm |
| Shielding Efficiency(dB) |
|
>90 |
| Min. Bending Radius Static(mm) |
8.4 |
| Velocity(%) |
|
76% |
| Temp(℃) |
|
-55 ~ 125 |
| Attenuation (@25℃&VSWR=1.0) and transmission power(@40℃&One standard atmosphere) |
| Frequency (MHz) |
Attenuation (dB/100M) |
Attenuation (dB/100F) |
Average Power(KW) |
| 30 |
6.80 |
2.07 |
2.027 |
| 50 |
8.79 |
2.68 |
1.569 |
| 100 |
12.45 |
3.79 |
1.108 |
| 300 |
21.64 |
6.60 |
0.637 |
| 500 |
28.01 |
8.54 |
0.492 |
| 900 |
37.73 |
11.50 |
0.365 |
| 1000 |
39.80 |
12.13 |
0.346 |
| 1500 |
48.93 |
14.92 |
0.282 |
| 2000 |
56.67 |
17.28 |
0.243 |
| 3000 |
69.76 |
21.27 |
0.198 |
| 4000 |
80.90 |
24.67 |
0.170 |
| 5000 |
90.79 |
27.68 |
0.152 |
| 6000 |
99.80 |
30.43 |
0.138 |
| 8000 |
115.94 |
35.35 |
0.119 |
| 10000 |
130.31 |
39.73 |
0.106 |
| 12000 |
143.42 |
43.73 |
0.096 |
| 12400 |
145.92 |
44.49 |
0.094 |
| 13500 |
152.62 |
46.53 |
0.090 |
| 15000 |
161.38 |
49.20 |
0.085 |
| 18000 |
177.80 |
54.21 |
0.078 |
| 24000 |
188.09 |
57.34 |
0.073 |
| 26500 |
218.77 |
66.70 |
0.063 |
