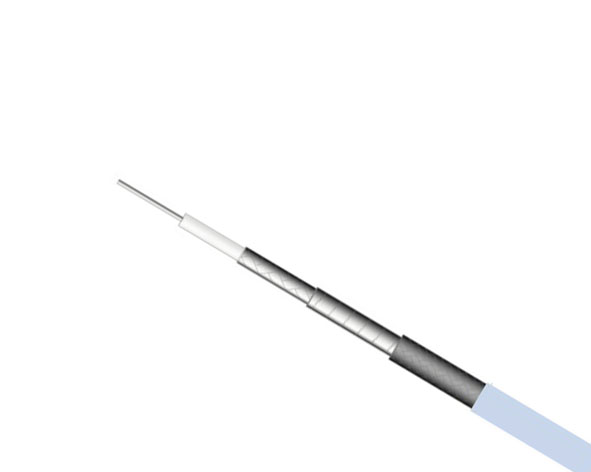

mBend High strength Phase RF Flexible cable MIB-250S, DC to 67GHz
PRODUCT OVERVIEW
- Applicable in frequencies up to 67GHz
-
- 100% tested preassembled coaxial cable assembly
-
- Excellent bending phase, amplitude stability
DOWNLOADS
PRODUCT SPECIFICATIONS
| Construction Specification |
|
| Item |
|
Diamenter(mm) |
| Outer Jacket |
|
2.50mm |
| Shielding Efficiency(dB) |
|
>90 |
| Min. Bending Radius Static(mm) |
12.00 |
| Velocity(%) |
|
75% |
| Temp(℃) |
|
-55 ~ 165 |
| Attenuation (@25℃&VSWR=1.0) and average power (@40℃&One standard atmosphere) |
| Frequency (MHz) |
Attenuation (dB/100M) |
Average Power(KW) |
| 300 |
39.10 |
0.190 |
| 1000 |
72.10 |
0.103 |
| 2000 |
102.90 |
0.072 |
| 4000 |
147.40 |
0.050 |
| 6000 |
182.20 |
0.041 |
| 8000 |
212.10 |
0.035 |
| 10000 |
238.80 |
0.031 |
| 12000 |
263.20 |
0.028 |
| 14000 |
285.90 |
0.026 |
| 18000 |
327.50 |
0.023 |
| 26500 |
404.70 |
0.018 |
| 40000 |
508.80 |
0.015 |
| 50000 |
577.10 |
0.013 |
| |
|
|
|
|
| Note: K1=2.2320000, K2=0.0015600 Formulas: dB100 m =K1*√FMhz+K2*FMHz |
