Accessories

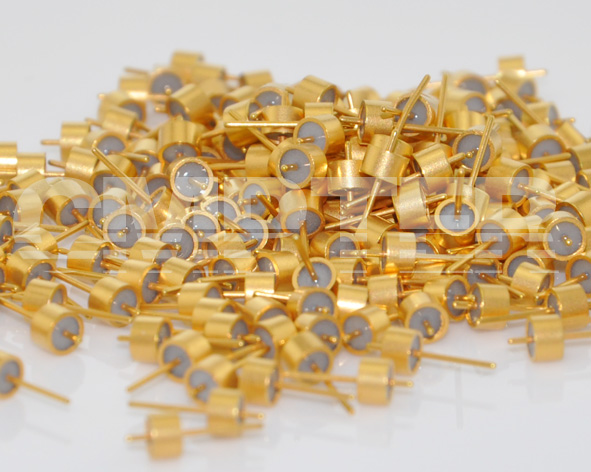

Hermetic seal is always use in hermetic connectors, that is a center contact as well as a metal ring, that are separated and isolated by melted glass. The glass-seal is soldered into connector body and is sealing the connector internally.

Those type of products apply in where ingress or loss of liquid, air or gas.

Features & Benefits:

1. Small
2. Lightweight
3. Hermetically sealed

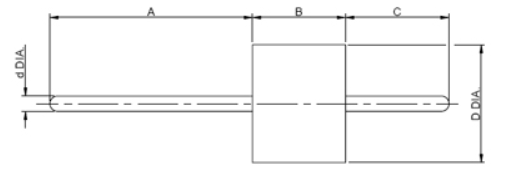

Glass Beads Assembly (Hermetic seal) Dimension:

d DIA.	D DIA.	A	B	C	Part No.
0.23 [.009]	1.73 [.068]	3.05 [.120]	1.40 [.055]	0.76 [.030]	GB-001
0.31 [.012]	1.93 [.076]	1.02 [.040]	1.40 [.055]	2.03 [.080]	GB-002
0.38 [.015]	2.49 [.098]	1.27 [.050]	1.57 [.062]	4.57 [.180]	GB-003
0.46 [.018]	2.79 [.110]	1.78 [.070]	1.52 [.060]	4.32 [.170]	GB-004
0.51 [.020]	4.01 [.158]	1.27 [.050]	1.52 [.060]	3.18 [.125]	GB-005
