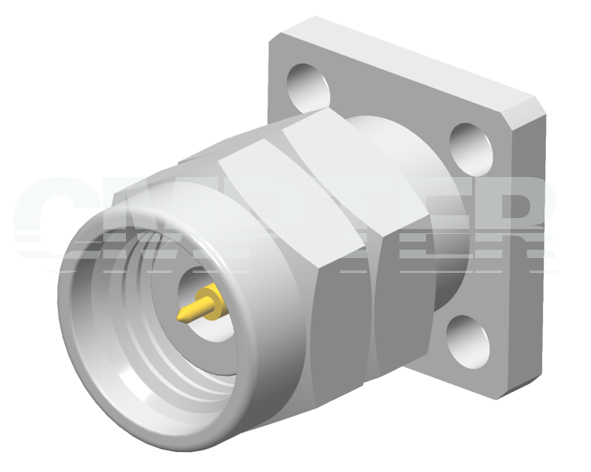

2.4mm Male 4 Hole Flange, Accept Pin

PN: 97-03-9F5-009
97-03-9F5-009-2
PRODUCT OVERVIEW
Interface Type: 2.4mm
Gender: Male
RoHS Certificate: Compliant
Interface Standards: IEE STD 287-2007

DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data
Impedance: 50Ohm
Frequency Range: ~ 50GHz
Insulation Resistance: ≥3000MΩ
Contact Resistance -centre contact ≤ 3m
-outer contact ≤ 2m
VSWR: ≤ 1.15
Temperature Range: -65 °C ~ +165 °C
Weight: 5g
Durability (Matings): >500

Material Data
Piece Part Base Material Plating
Center Contact: Beryllium Copper Alloy Gold plating (Nickel underplated)
Body: Stainless Steel(SU303) Passivated
Insulator: PEI, PTFE
