PN: D60-02-9E5-008

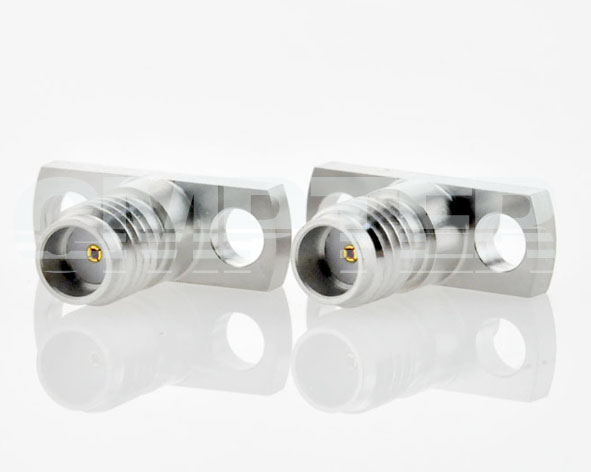

SSMA Straight Female, 2 Hole Flange, Metal Through the Wall
D60-02-9E5-008-2
PRODUCT OVERVIEW
Interface Type: SSMA
Gender: Female
RoHS Certificate: Compliant
Interface Standards: MIL-STD-348A

DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data
Impedance: 50Ohm
Frequency Range: ~ 40GHz
Insulation Resistance: ≥1000MΩ
Contact Resistance -centre contact ≤ 5m
-outer contact ≤ 2.5m
VSWR:  1.20:1
Temperature Range: -65 °C ~ +165 °C
Weight: 2g
Durability (Matings): >500

Material Data
Piece Part Base Material Plating
Center Contact: Beryllium Copper Alloy Gold plating (Nickel underplated)
Body: Stainless Steel(SU303) Passivated
Insulator: PEI, PTFE
