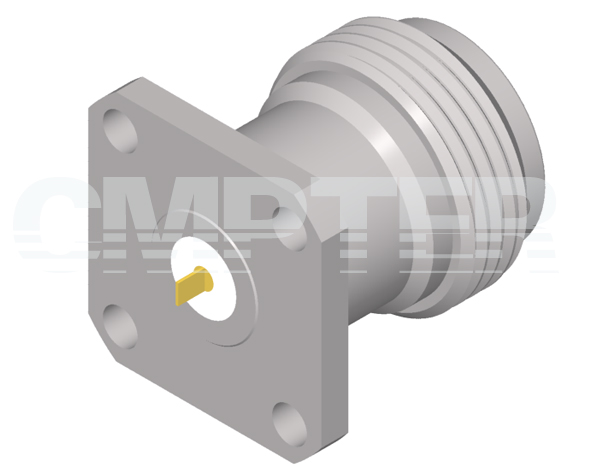

N Female 4 Hole Flange With Tab

PN: 50-02-9F6-069
50-02-9F6-069-2
PRODUCT OVERVIEW
Interface Type: N-type
Gender: Female
RoHS Certificate: Compliant
Interface Standards: MIL-STD-348A

DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data
Impedance: 50Ohm
Frequency Range: ~ 18 GHz
Insulation Resistance: ≥5000MΩ
Contact Resistance -centre contact ≤ 1m
-outer contact ≤ 0.2m
VSWR:  1.15:1
Temperature Range: -65 °C ~ +165 °C
Weight: 28g
Durability (Matings): >500

Material Data
Piece Part Base Material Plating
Center Contact: Beryllium Copper Alloy Gold plating (Nickel underplated)
Body: Stainless Steel(SU303) Passivated
Insulator: PTFE & PEI
