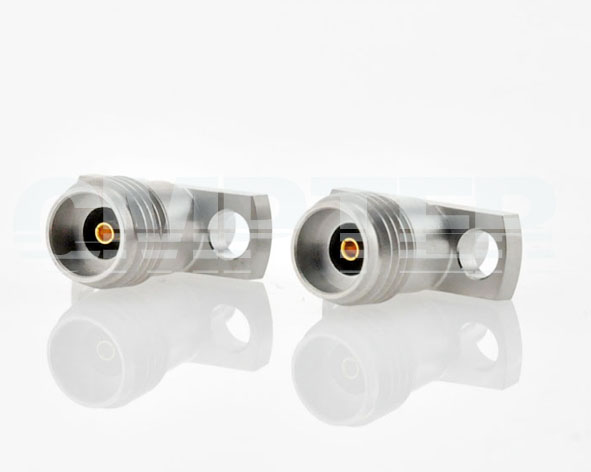

2.92mm Female 2 Hole Flange, Metal Through the Wall

PN: 96-02-9E2-015
96-02-9E2-015-01
PRODUCT OVERVIEW
Interface Type: 2.92mm
Gender: Female
RoHS Certificate: Compliant
Interface Standards: MIL-STD-348A

DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data
Impedance: 50Ohm
Frequency Range: ~ 40 GHz
Insulation Resistance: ≥3000MΩ
Contact Resistance -centre contact ≤ 3m
-outer contact ≤ 2m
VSWR: 1.15:1
Temperature Range: -65 °C ~ +165 °C
Weight: 2g
Durability (Matings): >500

Material Data
Piece Part Base Material Plating
Center Contact: Beryllium Copper Alloy Gold plating (Nickel underplated)
Body: Stainless Steel(SU303) Passivated
Insulator: PTFE & PEI
