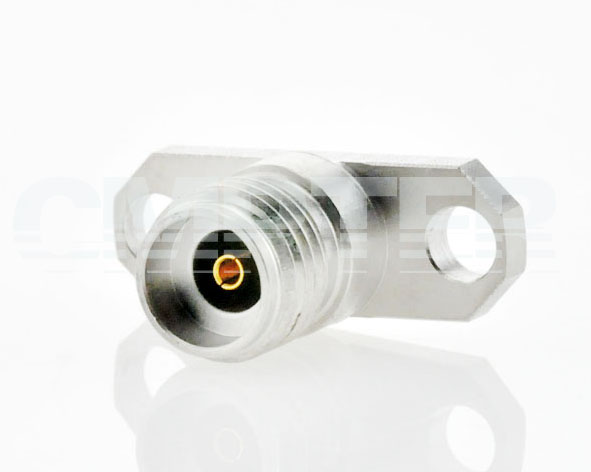

2.92mm Female 2 Hole Flange, Insulator Through The wall

PN: 96-02-9E7-023
96-02-9E7-023-001
PRODUCT OVERVIEW
Interface Type: 2.92mm
Gender: Female
RoHS Certificate: Compliant
Interface Standards: MIL-STD-348A

DOWNLOADS
  • Customer Drawing [PDF]
  • 3D-Model [STP]
    • PRODUCT SPECIFICATIONS
    Technical Data
    Impedance: 50Ohm
    Frequency Range: 0 ~ 40 GHz
    Insulation Resistance: ≥3000MΩ
    Contact Resistance -centre contact ≤ 3mΩ
    -outer contact ≤ 2mΩ
    VSWR: 1.15:1
    Temperature Range: -65 °C ~ +165 °C
    Weight: 2g
    Durability (Matings): >500

    Material Data
    Piece Part Base Material Plating
    Center Contact: Beryllium Copper Alloy Gold plating (Nickel underplated)
    Body: Stainless Steel(SU303) Passivated
    Insulator: PTFE & PEI
