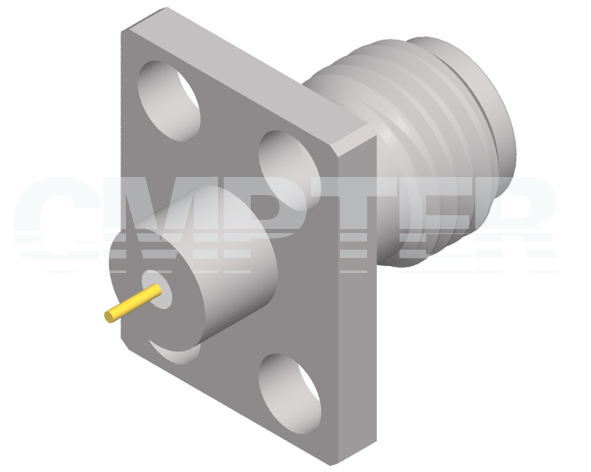

SMA Female 4 Hole Flange, Metal Through the Wall
PRODUCT OVERVIEW
Interface Type: |
SMA |
Gender: |
Female |
RoHS Certificate: |
Compliant |
Interface Standards: |
MIL-STD-348A |
DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data |
Impedance: |
50Ohm |
Frequency Range: |
0 ~ 27 GHz |
Insulation Resistance: |
≥5000MΩ |
Contact Resistance |
-centre contact |
≤ 3mΩ |
-outer contact |
≤ 2mΩ |
VSWR: |
1.15:1 |
Temperature Range: |
-65 °C ~ +165 °C |
Weight: |
3g |
Durability (Matings): |
>500 |
|
|
Material Data |
Piece Part |
Base Material |
Plating |
Center Contact: |
Beryllium Copper Alloy |
Gold plating (Nickel underplated) |
Body: |
Stainless Steel(SU303) |
Passivated |
Insulator: |
PTFE, PEI |
|
