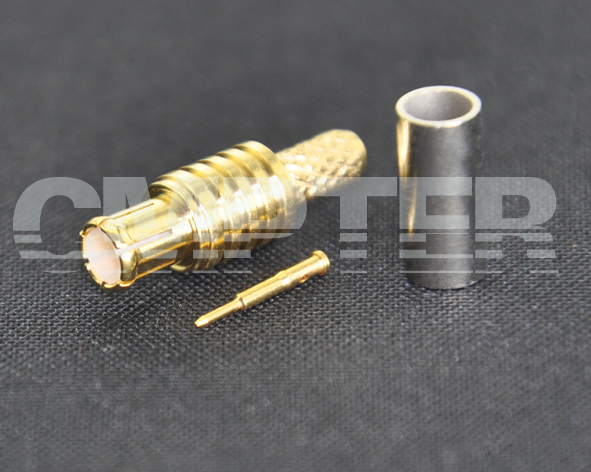

MCX Straight Male Crimp for LMR100/RG174/RG316 Cable

PN: 30-03-1M00-001
30-03-1M00-001-2
PRODUCT OVERVIEW
Interface Type: MCX
Gender: Male
RoHS Certificate: Compliant
Interface Standards: IEC 61169

DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data
Impedance: 50Ohm
Frequency Range: ~ 3 GHz
Insulation Resistance: ≥1000MΩ
Voltage Rating 250 V rms
Cable entry center contact Soldered
Cable entry outer contact Crimped
Temperature Range: -65 °C ~ +165 °C
Weight: 2g
Durability (Matings): >500

Material Data
Piece Part Base Material Plating
Center Contact: Brass Gold plating (Nickel underplated)
Outer Contact Phosphor Bronze Gold plating (Nickel underplated)
Body: Brass Gold plating (Nickel underplated)
Crimp Ferrule Copper Nickel plating
Insulator: PTFE
