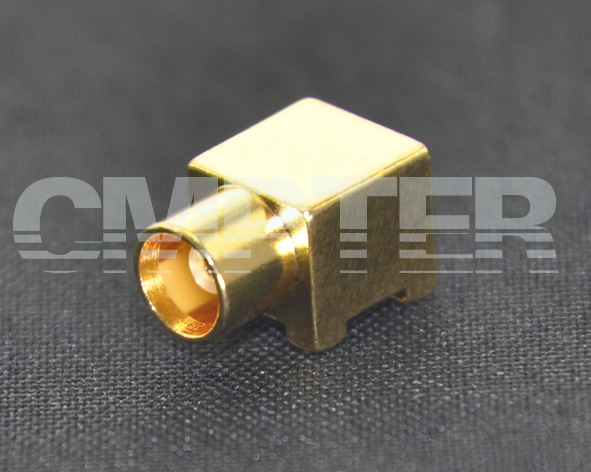

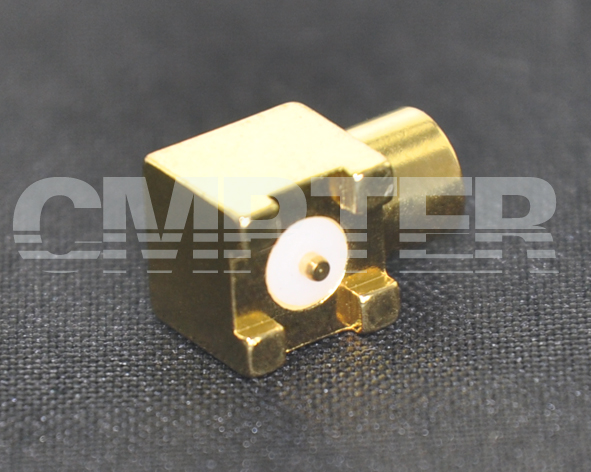

MCX Female Right Angle Solder Attachment Surface Mount PCB
PRODUCT OVERVIEW
Interface Type: |
MCX |
Gender: |
Female |
RoHS Certificate: |
Compliant |
Interface Standards: |
IEC 61169 |
DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data |
Impedance: |
50Ohm |
Frequency Range: |
0 ~ 6 GHz |
Insulation Resistance: |
≥1000MΩ |
Voltage Rating |
250 V rms |
Temperature Range: |
-65 °C ~ +165 °C |
Weight: |
2g |
Durability (Matings): |
>500 |
|
|
Material Data |
Piece Part |
Base Material |
Plating |
Pin Contact |
Phosphor Bronze |
Gold plating (Nickel underplated) |
Body: |
Brass |
Gold plating (Nickel underplated) |
Insulator: |
PTFE |
|
