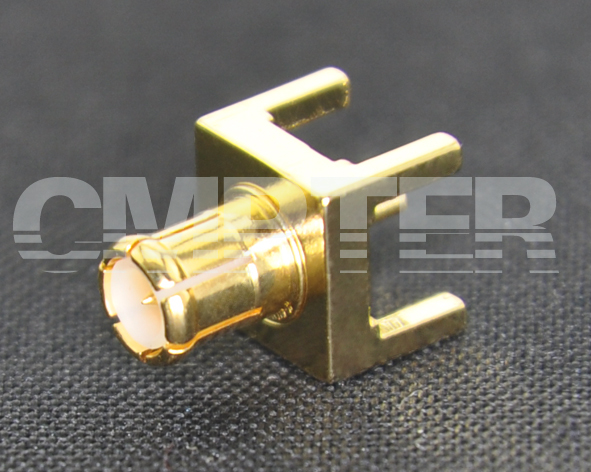

MCX Male connector PCB Mount

PN: 30-03-5L2-032
30-03-5L2-032-03
PRODUCT OVERVIEW
Interface Type: MCX
Gender: Male
RoHS Certificate: Compliant
Interface Standards: IEC 61169

DOWNLOADS
  • Customer Drawing [PDF]
    • PRODUCT SPECIFICATIONS
    Technical Data
    Impedance: 50Ohm
    Frequency Range: 0 ~ 6 GHz
    Insulation Resistance: ≥1000MΩ
    Voltage Rating 250 V rms
    Temperature Range: -65 °C ~ +165 °C
    Weight: 2g
    Durability (Matings): >500

    Material Data
    Piece Part Base Material Plating
    Pin Contact Brass Gold plating (Nickel underplated)
    Body: Brass Gold plating (Nickel underplated)
    Insulator: PTFE
