RF coaxial connectors

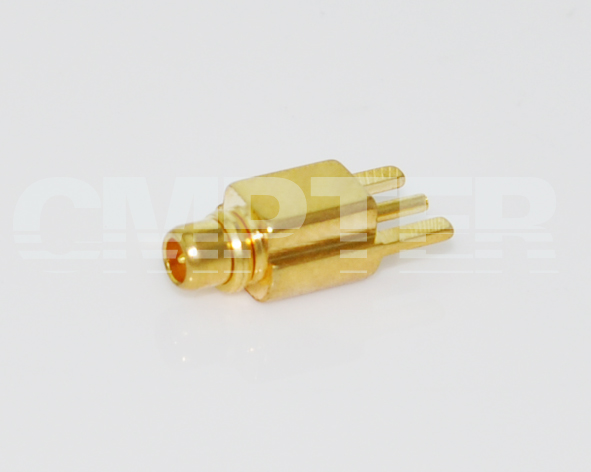

MMCX Male PCB Mount connector, PLUG SMT,END LAUNCH, BLUND POST

PN: 31-03-6L2-016
31-03-6L2-016-02
PRODUCT OVERVIEW
Interface Type: MMCX
Gender: Male
RoHS Certificate: Compliant
Interface Standards: BS-EN-122340

DOWNLOADS
  • Customer Drawing [PDF]
    • PRODUCT SPECIFICATIONS
    Technical Data
    Impedance: 50Ohm
    Frequency Range: 0 ~ 3 GHz
    Insulation Resistance: ≥1000MΩ
    Temperature Range: -55 °C ~ +165 °C
    Weight: 0.6g
    Durability (Matings): >500

    Material Data
    Piece Part Base Material Plating
    Center Contact: Brass Gold plating (Nickel underplated)
    Spring Latch Beryllium Copper Alloy, Gold plating (Nickel underplated)
    Body: Brass Gold plating (Nickel underplated)
    Insulator: PTFE
