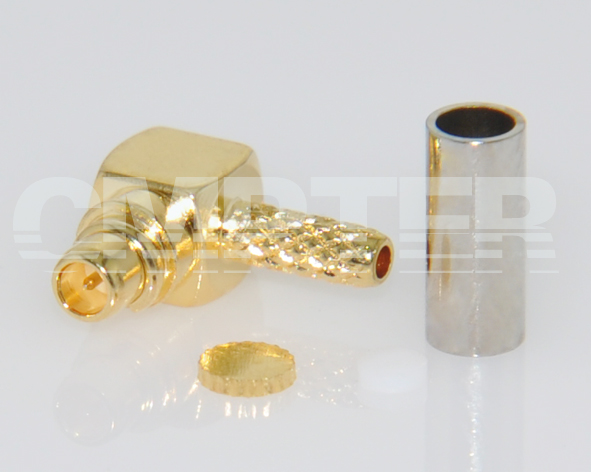

MMCX Right Angle Male Crimp for RG178 Cable

PN: 31-13-1M12-039
31-13-1M12-039-02
PRODUCT OVERVIEW
Interface Type: MMCX
Gender: Male
RoHS Certificate: Compliant
Interface Standards: BS-EN-122340

DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data
Impedance: 50Ohm
Frequency Range: ~ 3 GHz
Insulation Resistance: ≥1000MΩ
Cable entry center contact Soldered
Cable entry outer contact Crimped
Temperature Range: -55 °C ~ +165 °C
Weight: 1g
Durability (Matings): >500

Material Data
Piece Part Base Material Plating
Center Contact: Brass Gold plating (Nickel underplated)
Spring Latch Beryllium Copper Alloy, Gold plating (Nickel underplated)
Body: Brass Gold plating (Nickel underplated)
Insulator: PTFE
