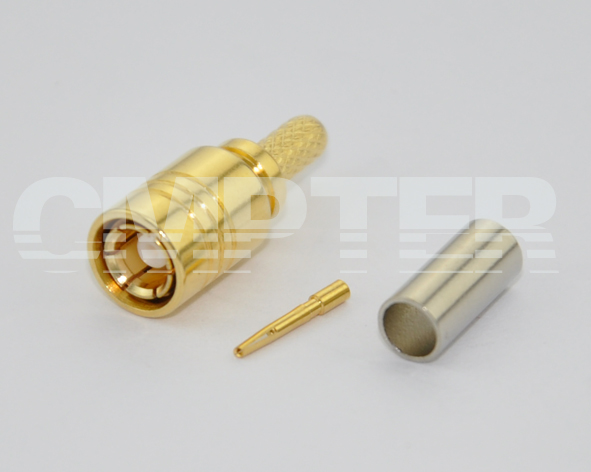

SMB Plug Crimp LMR100 RG174 RG188 RG316 Cable
PRODUCT OVERVIEW
| Interface Type: |
SMB |
| Gender: |
Male |
| RoHS Certificate: |
Compliant |
| Interface Standards: |
IEC-60169 |
DOWNLOADS
PRODUCT SPECIFICATIONS
| Technical Data |
| Impedance: |
50Ohm |
| Frequency Range: |
0 ~ 3 GHz |
| Insulation Resistance: |
≥3000MΩ |
| Cable entry center contact |
Soldered |
| Cable entry outer contact |
Crimped |
| Temperature Range: |
-55 °C ~ +165 °C |
| Weight: |
2.5g |
| Durability (Matings): |
>500 |
| |
|
| Material Data |
| Piece Part |
Base Material |
Plating |
| Center Contact: |
Phosphor Bronze |
Gold plating (Nickel underplated) |
| Body: |
Brass |
Gold plating (Nickel underplated) |
| Insulator: |
PTFE |
|
