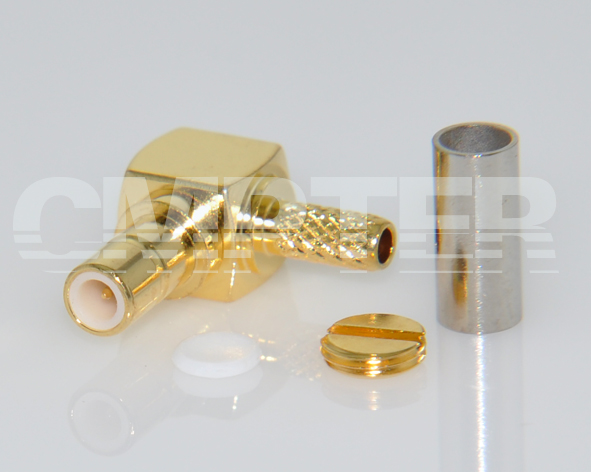

SMB Right Angle Jack Crimp for LMR100/RG174/RG316 Cable (Male Center Contact)

PN: 70-12-1M00-027
70-12-1M00-027-02
PRODUCT OVERVIEW
Interface Type: SMB
Gender: Female
RoHS Certificate: Compliant
Interface Standards: IEC-60169

DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data
Impedance: 50Ohm
Frequency Range: ~ 3 GHz
Insulation Resistance: ≥3000MΩ
Cable entry center contact Soldered
Cable entry outer contact Crimped
Temperature Range: -55 °C ~ +165 °C
Weight: 2.3g
Durability (Matings): >500

Material Data
Piece Part Base Material Plating
Center Contact: Brass Gold plating (Nickel underplated)
Body: Brass Gold plating (Nickel underplated)
Insulator: PTFE
