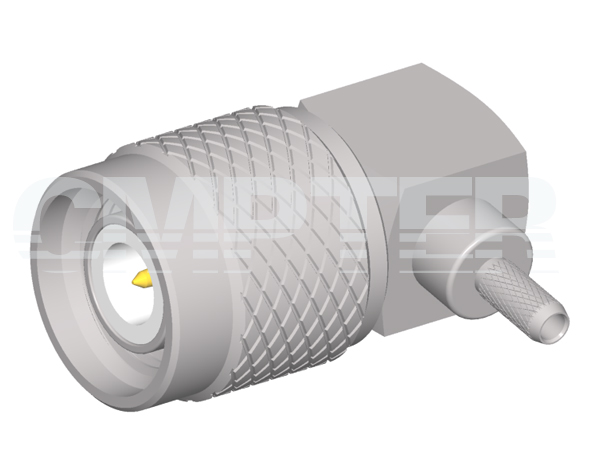

TNC Right Angle Male Crimp for LMR100/RG174/RG316 Cable

PN: 80-13-1M00-010
80-13-1M00-010-02
PRODUCT OVERVIEW
Interface Type: TNC
Gender: Male
RoHS Certificate: Compliant
Interface Standards: IEC-60169

DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data
Impedance: 50Ohm
Frequency Range: ~ 6GHz
Insulation Resistance: ≥5000MΩ
Withstanding Voltage: 1000V
Temperature Range: -65 °C ~ +165 °C
Weight: 21g
Durability (Matings): >500

Material Data
Piece Part Base Material Plating
Center Contact: Brass Gold plating (Nickel underplated)
Body: Brass Nickel plating
Coulping Nut: Brass Nickel plating
Crimp Ferrule: Copper Nickel plating
Insulator: PTFE
Gasket MVQ (Silicone rubber)
