PN: 60-03-2M06-001

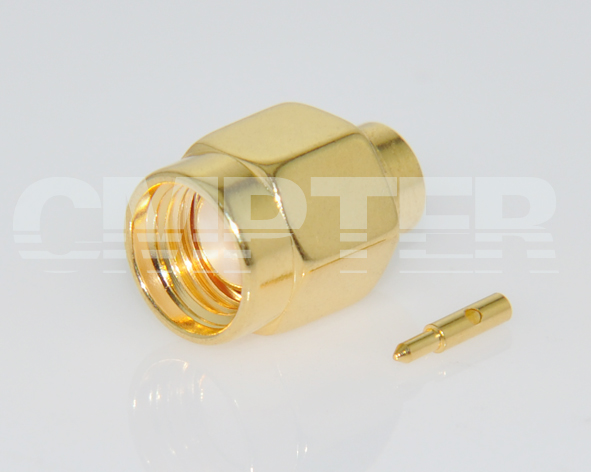

SMA Straight Male Solder for RG402/.141 Cable
60-03-2M06-001-02
PRODUCT OVERVIEW
Interface Type: SMA
Gender: Male
RoHS Certificate: Compliant
Interface Standards: IEC-60169

DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data
Impedance: 50Ohm
Frequency Range: ~ 18GHz
Insulation Resistance: ≥5000MΩ
Withstanding Voltage: 1000V
Temperature Range: -65 °C ~ +165 °C
Weight: 2g
Durability (Matings): >500

Material Data
Piece Part Base Material Plating
Center Contact: Brass Gold plating (Nickel underplated)
Body: Brass Gold plating (Nickel underplated)
Coupling Nut: Brass Gold plating (Nickel underplated)
Insulator: PTFE
