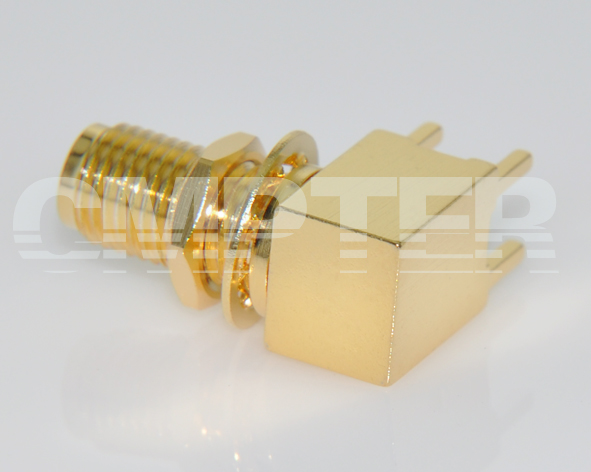

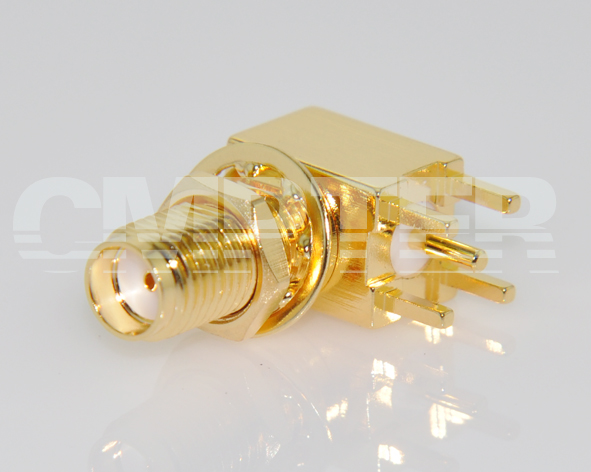

SMA Female Right Angle Bulkhead for PCB Mount

PN: 60-12-5B2-073
60-12-5B2-073-03
60-12-5B2-073-02
PRODUCT OVERVIEW
Interface Type: SMA
Gender: Female
RoHS Certificate: Compliant
Interface Standards: IEC-60169

DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data
Impedance: 50Ohm
Frequency Range: ~ 6GHz
Insulation Resistance: ≥5000MΩ
Withstanding Voltage: 1000V
Temperature Range: -65 °C ~ +165 °C
Weight: 4g
Durability (Matings): >500

Material Data
Piece Part Base Material Plating
Center Contact: Beryllium alloy Gold plating (Nickel underplated)
Body: Brass Gold plating (Nickel underplated)
Insulator: PTFE
