PN: 60-13-2M62-306

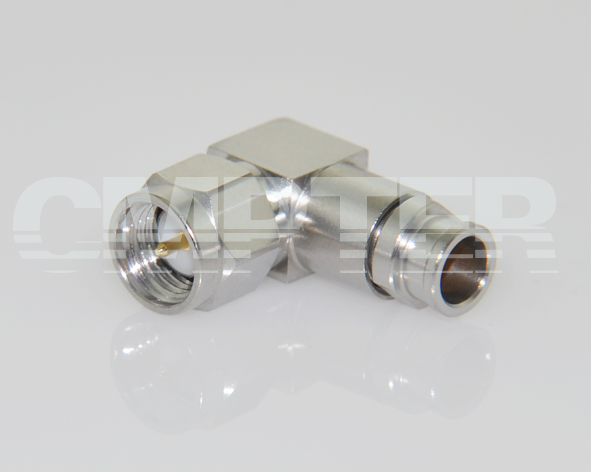

SMA Right Angle Male Solder for CTFC-400 CTFD-141 Cable
60-13-2M62-306-2
60-13-2M62-306-02
PRODUCT OVERVIEW
Interface Type: SMA
Gender: Male
RoHS Certificate: Compliant
Interface Standards: IEC60169

DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data
Impedance: 50Ohm
Frequency Range: ~ 18GHz
Insulation Resistance: ≥5000MΩ
Withstanding Voltage: 1000V
Temperature Range: -65 °C ~ +165 °C
Weight: 3.5g
Durability (Matings): >500

Material Data
Piece Part Base Material Plating
Center Contact: Beryllium Copper Alloy Gold plating (Nickel underplated)
Body: Stainless steel Passivated
Coupling Nut: Stainless steel Passivated
Insulator: PTFE

Gasket MVQ (Silicone rubber)
