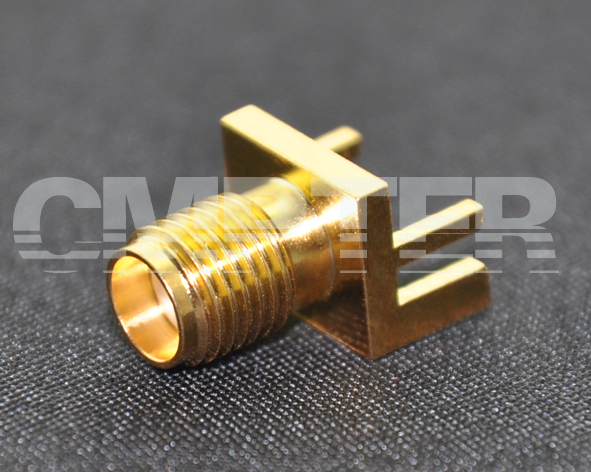

SMA Straight Female for 1.57 [.062 ] Thickness PCB Board, Edge Mount

PN: 60-02-5L2-338
60-02-5L2-338-02
PRODUCT OVERVIEW
Interface Type: SMA
Gender: Female
RoHS Certificate: Compliant
Interface Standards: IEC-60169

DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data
Impedance: 50Ohm
Frequency Range: ~ 6GHz
Insulation Resistance: ≥5000MΩ
Withstanding Voltage: 1000V
Temperature Range: -65 °C ~ +165 °C
Weight: 3g
Durability (Matings): >500

Material Data
Piece Part Base Material Plating
Center Contact: Beryllium alloy Gold plating (Nickel underplated)
Body: Brass Gold plating (Nickel underplated)
Insulator: PTFE
