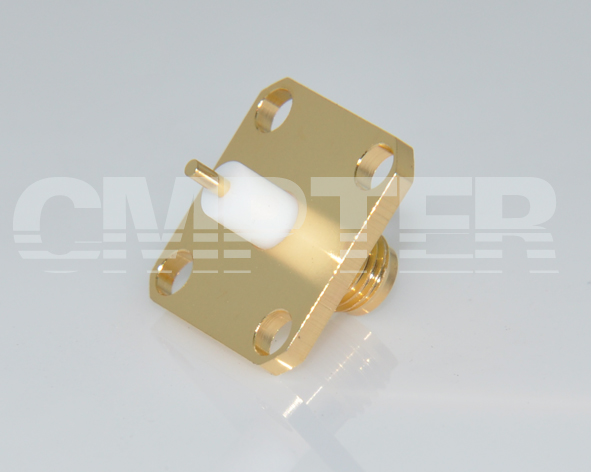

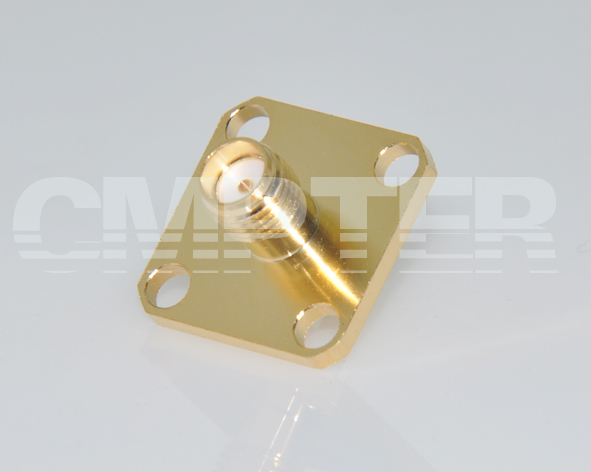

SMA Straight Female with Coaxial End, 4 Hole Flange Mount

PN: 60-02-8F2-340
340-01
340-02
PRODUCT OVERVIEW
Interface Type: SMA
Gender: Female
RoHS Certificate: Compliant
Interface Standards: IEC-60169

DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data
Impedance: 50Ohm
Frequency Range: ~ 6GHz
Insulation Resistance: ≥5000MΩ
Withstanding Voltage: 1000V
Temperature Range: -65 °C ~ +165 °C
Weight: 5g
Durability (Matings): >500

Material Data
Piece Part Base Material Plating
Center Contact: Beryllium alloy Gold plating (Nickel underplated)
Body: Brass Gold plating (Nickel underplated)
Insulator: PTFE
