PN: 60-12-1D12-343

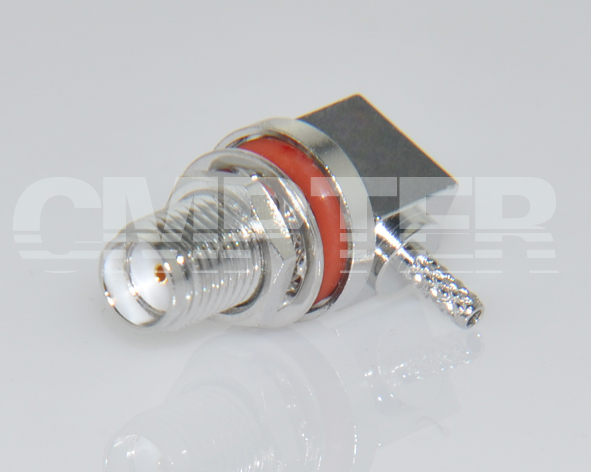

SMA Right Angle Waterproof Bulkhead Female Crimp for RG178 Cable
60-12-1D12-343-01
PRODUCT OVERVIEW
Interface Type: SMA
Gender: Female
RoHS Certificate: Compliant
Interface Standards: IEC-60169

DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data
Impedance: 50Ohm
Frequency Range: ~ 6GHz
Insulation Resistance: ≥5000MΩ
Withstanding Voltage: 1000V
Temperature Range: -65 °C ~ +165 °C
Weight: 21g
Durability (Matings): >500

Material Data
Piece Part Base Material Plating
Center Contact: Beryllium Copper Alloy Gold plating (Nickel underplated)
Body: Brass Tri-Metal plated
Crimp Ferrule: Copper Nickel plating
Insulator: PTFE
Gasket MVQ (Silicone rubber)
