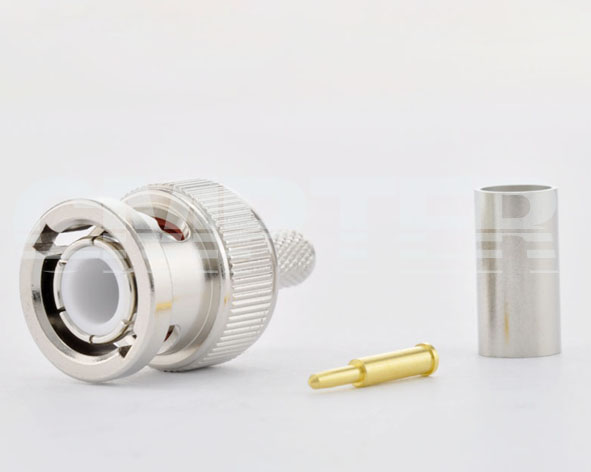

BNC Straight Male Crimp for RG142/RG223/RG400 Cable

PN: 10-03-1M21-074
10-03-1M21-074-02
PRODUCT OVERVIEW
Interface Type: BNC
Gender: Male
RoHS Certificate: Compliant
Interface Standards: IEC 61169-8

DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data
Impedance: 50Ohm
Frequency Range: ~ 3 GHz
Insulation Resistance: ≥5000MΩ
Withstanding Voltage 1000V
Cable entry center contact Soldered
Cable entry outer contact Crimped
Temperature Range: -65 °C ~ +165 °C
Weight: 11g
Durability (Matings): >500

Material Data
Piece Part Base Material Plating
Center Contact: Brass Gold plating (Nickel underplated)
Body: Brass Nickel plating
Coupling Nut Brass Nickel plating
Crimp Ferrule Copper Nickel plating
Insulator: PTFE
