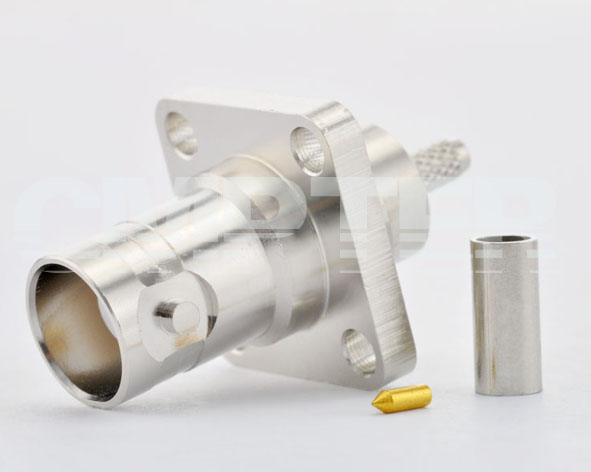

BNC Straight 4 Hole Flange Female Clamp for RG174/RG316/LMR100 Cable

PN: 10-02-4F00-079
10-02-4F00-079-01
PRODUCT OVERVIEW
Interface Type: BNC
Gender: Female
RoHS Certificate: Compliant
Interface Standards: IEC 61169-8

DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data
Impedance: 50Ohm
Frequency Range: ~ 4 GHz
Insulation Resistance: ≥5000MΩ
Withstanding Voltage 1000V
Cable entry center contact Soldered
Cable entry outer contact Crimped
Temperature Range: -65 °C ~ +165 °C
Weight: 20g
Durability (Matings): >500

Material Data
Piece Part Base Material Plating
Center Contact: Phosphor Bronze Gold plating (Nickel underplated)
Body: Brass Nickel plating
Insulator: PTFE
