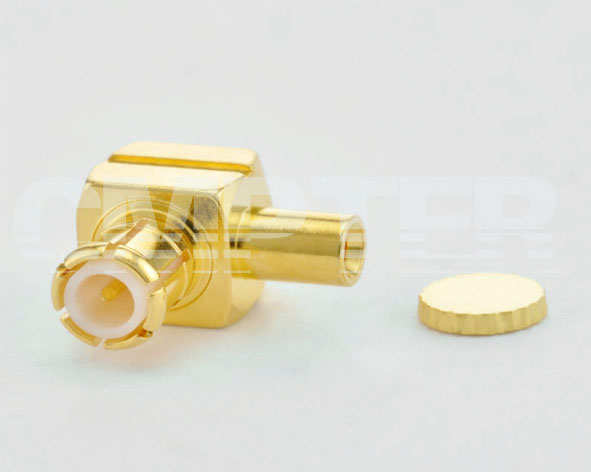

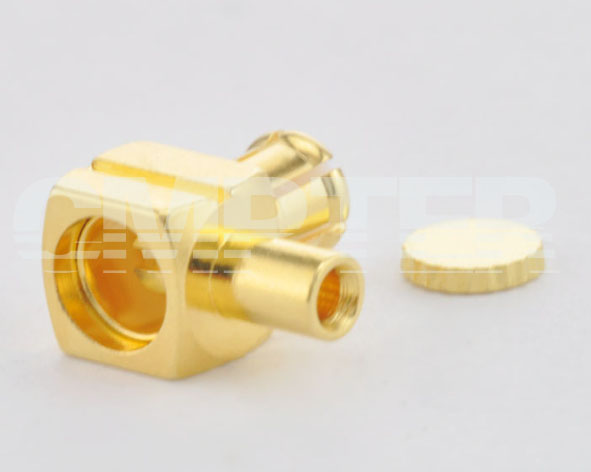

MCX connectors Right Angle Male Solder for 1.37mm Cable, DC to 6GHz

PN: 30-13-2M23-042
30-13-2M23-042-01
30-13-2M23-042-02
PRODUCT OVERVIEW
Interface Type: MCX
Gender: Male
RoHS Certificate: Compliant
Interface Standards: IEC 61169

DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data
Impedance: 50Ohm
Frequency Range: ~ 6 GHz
Insulation Resistance: ≥1000MΩ
Voltage Rating 250 V rms
Temperature Range: -65 °C ~ +165 °C
Weight: 3g
Durability (Matings): >500

Material Data
Piece Part Base Material Plating
Pin Contact Brass Gold plating (Nickel underplated)
Body: Brass Gold plating (Nickel underplated)
Insulator: PTFE
