N Straight Waterproof Bulkhead Female RF connectors Crimp for RG11 Cable, 75Ohm

PN: 50-02-1D07-177

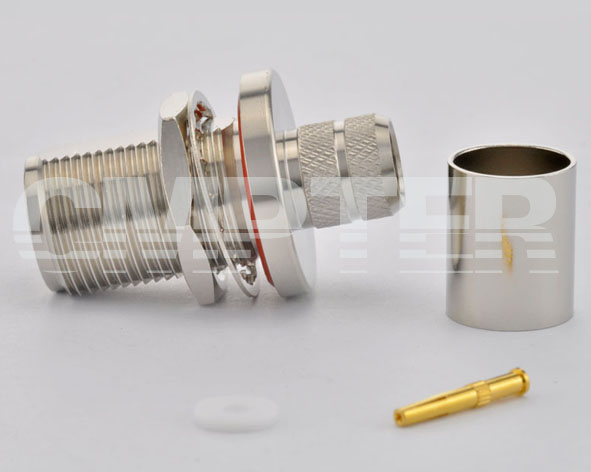

50-177-001

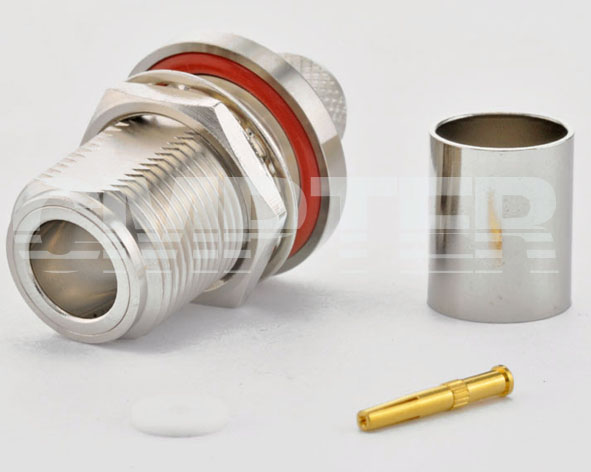

50-177-002
PRODUCT OVERVIEW
Interface Type: N-type
Gender: Female
RoHS Certificate: Compliant
Interface Standards: IEC60169

DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data
Impedance: 50Ohm
Frequency Range: ~ 1GHz
Insulation Resistance: ≥5000MΩ
Withstanding Voltage: 1000V
Temperature Range: -65 °C ~ +165 °C
Weight: 37g
Durability (Matings): >500

Material Data
Piece Part Base Material Plating
Center Contact: Phosphor Bronze  Gold plating (Nickel underplated)
Body: Brass Nickel plating
Fastening Nut: Brass Nickel plating
Washer Phosphor Bronz Nickel plating
Insulator: PTFE

Crimp ferrule Copper Nickel plating
Gasket MVQ (Silicone rubber)
