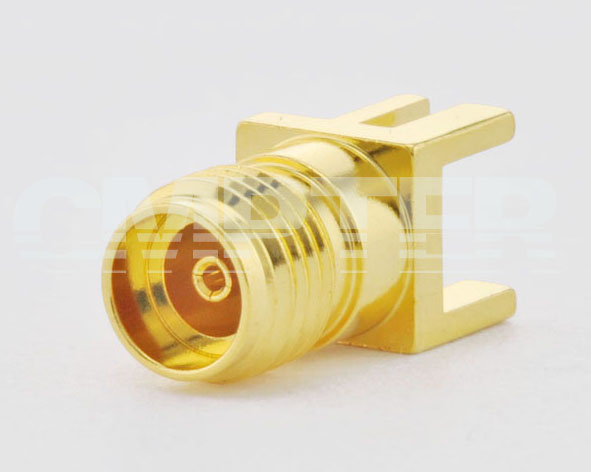

3.5mm Female PCB Board Edge Mount, DC to 27GHz
PRODUCT OVERVIEW
| Interface Type: |
3.5mm |
| Gender: |
Female |
| RoHS Certificate: |
Compliant |
| Interface Standards: |
IEC-60169 |
DOWNLOADS
PRODUCT SPECIFICATIONS
| Technical Data |
| Impedance: |
50Ohm |
| Frequency Range: |
0 ~ 27 GHz |
| Insulation Resistance: |
≥5000MΩ |
| Contact Resistance |
-centre contact |
≤ 3mΩ |
| -outer contact |
≤ 2mΩ |
| VSWR: |
1.15:1 |
| Temperature Range: |
-65 °C ~ +165 °C |
| Weight: |
2g |
| Durability (Matings): |
>500 |
| |
|
| Material Data |
| Piece Part |
Base Material |
Plating |
| Center Contact: |
Beryllium Copper Alloy |
Gold plating (Nickel underplated) |
| Body: |
Brass |
Gold plating (Nickel underplated) |
| Insulator: |
PTFE, PEI |
|
