RF coaxial connectors

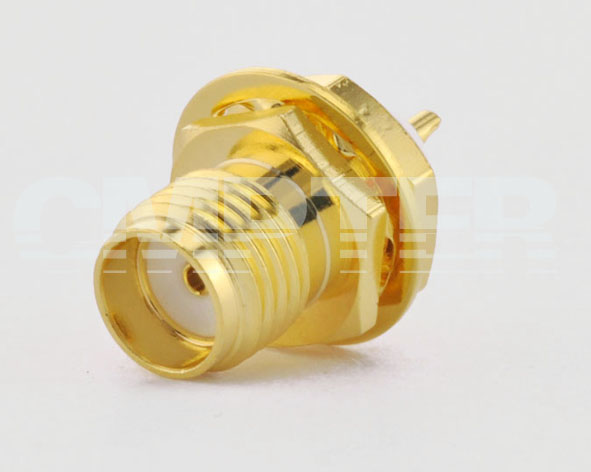

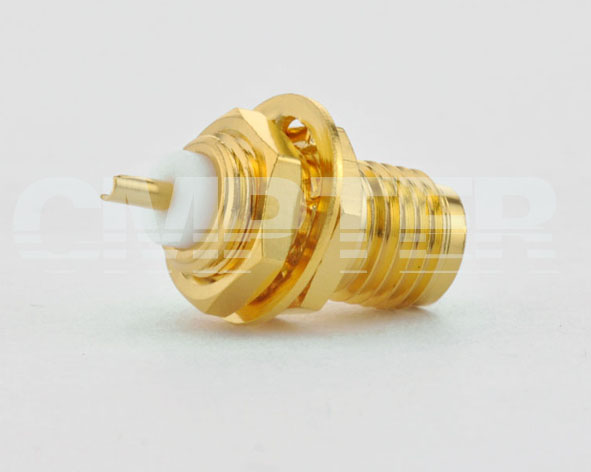

SMA Female Blukhead with Solder Cup, DC to 6GHz

PN: 60-02-8A1-355
60-355-002
60-355-001
PRODUCT OVERVIEW
Interface Type: SMA
Gender: Female
RoHS Certificate: Compliant
Interface Standards: IEC-60169
DOWNLOADS
  • Customer Drawing [PDF]
    • PRODUCT SPECIFICATIONS
    Technical Data
    Impedance: 50Ohm
    Frequency Range: 0 ~ 6GHz
    Insulation Resistance: ≥5000MΩ
    Withstanding Voltage: 1000V
    Temperature Range: -65 °C ~ +165 °C
    Weight: 3g
    Durability (Matings): >500

    Material Data
    Piece Part Base Material Plating
    Center Contact: Beryllium alloy Gold plating (Nickel underplated)
    Body: Brass Gold plating (Nickel underplated)
    Fastening Nut: Brass Gold plating (Nickel underplated)
    Washer: Phosphor Bronze Gold plating (Nickel underplated)
    Insulator: PTFE
