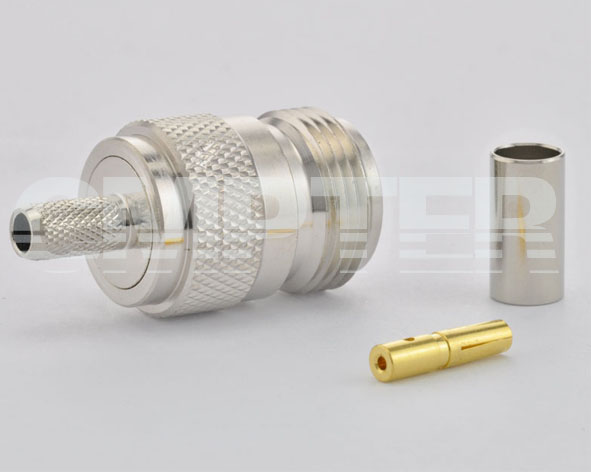

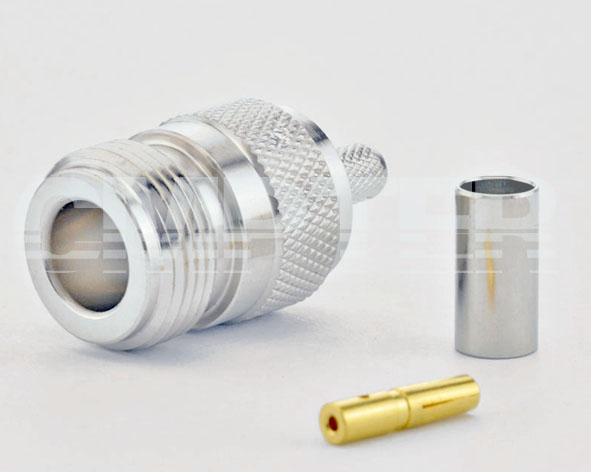

N Female Crimp RG58/LMR195 Cable, DC to 6GHz

PN: 50-02-1M18-022
50-022-001
50-022-002
PRODUCT OVERVIEW
Interface Type: N-type
Gender: Female
RoHS Certificate: Compliant
Interface Standards: IEC60169

DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data
Impedance: 50Ohm
Frequency Range: ~ 6GHz
Insulation Resistance: ≥5000MΩ
Withstanding Voltage: 1000V
Temperature Range: -65 °C ~ +165 °C
Weight: 28g
Durability (Matings): >500

Material Data
Piece Part Base Material Plating
Center Contact: Phosphor Bronze  Siliver plating (Nickel underplated)
Body: Brass Nickel plating
Insulator: PTFE

Crimp ferrule Copper Nickel plating
