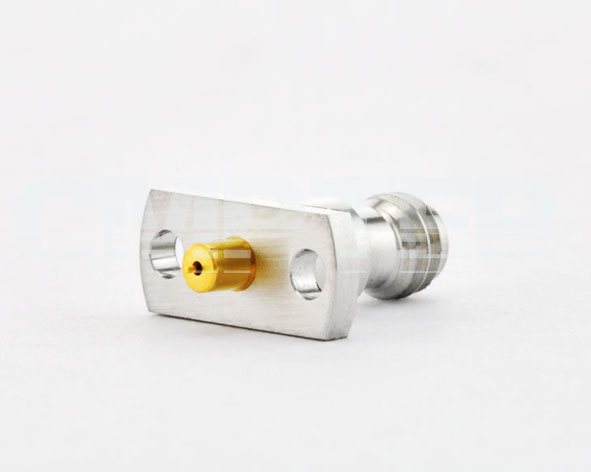

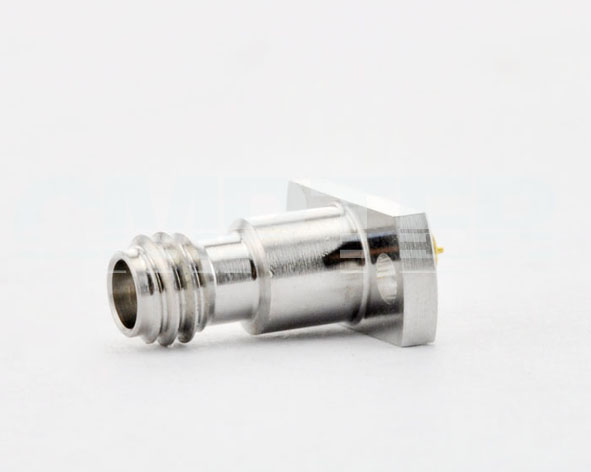

1.0mm Female connector DC to 110GHz, Metal Through the Wall with 2 Hole Flange
PRODUCT OVERVIEW
| Interface Type: |
1.0 mm |
| Gender: |
Female |
| RoHS Certificate: |
Compliant |
DOWNLOADS
PRODUCT SPECIFICATIONS
| Technical Data |
| Impedance: |
50Ohm |
| Frequency Range: |
0 ~ 110GHz |
| VSWR: |
≤ 1.35 |
| Temperature Range: |
-55 °C ~ +80 °C |
| Weight: |
3g |
| Durability (Matings): |
>500 |
| |
|
| Material Data |
| Piece Part |
Base Material |
Plating |
| Center Contact: |
Beryllium Copper Alloy |
Gold plating (Nickel underplated) |
| Body: |
Stainless Steel(SU303) |
Passivated |
| Insulator: |
CPS |
|
