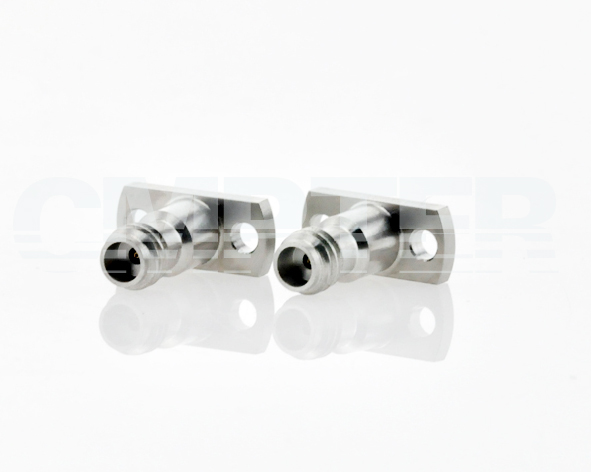

1.0mm Female connector with 2 Hole Flange Accepts Pin, DC to 110GHz
PRODUCT OVERVIEW
Interface Type: |
1.0 mm |
Gender: |
Female |
RoHS Certificate: |
Compliant |
DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data |
Impedance: |
50Ohm |
Frequency Range: |
0 ~ 110GHz |
VSWR: |
≤ 1.35 |
Temperature Range: |
-55 °C ~ +80 °C |
Weight: |
3g |
Durability (Matings): |
>500 |
|
|
Material Data |
Piece Part |
Base Material |
Plating |
Center Contact: |
Beryllium Copper Alloy |
Gold plating (Nickel underplated) |
Body: |
Stainless Steel(SU303) |
Passivated |
Insulator: |
CPS |
|
