N type Male connecotr Crimp for LMR400 & RG8 Cable

PN: 50-03-1M01-240
50-03-1M01-240-01

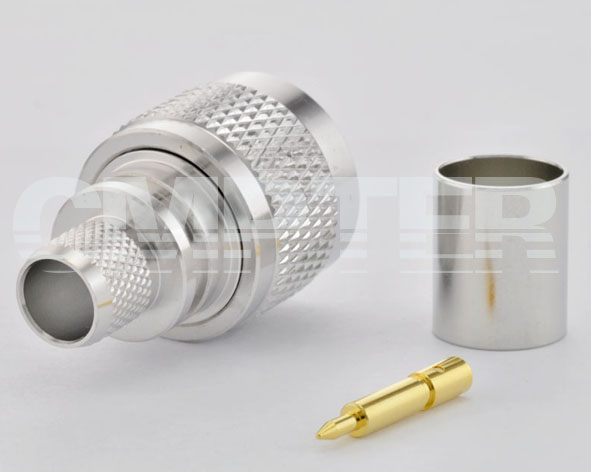

50-03-1M01-240-02
PRODUCT OVERVIEW
Interface Type: N-type
Gender: Male
RoHS Certificate: Compliant
Interface Standards: IEC60169

DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data
Impedance: 50Ohm
Frequency Range: ~ 3GHz
Insulation Resistance: ≥5000MΩ
Withstanding Voltage: 1000V
Temperature Range: -65 °C ~ +165 °C
Weight: 30g
Durability (Matings): >500

Material Data
Piece Part Base Material Plating
Center Contact: Brass Gold plating (Nickel underplated)
Body: Brass Tri-Metal-plated(100μinch Min.)
Coulping Nut: Brass Tri-Metal-plated(100μinch Min.)
Insulator: PTFE

Crimp ferrule Copper Nickel plating
Gasket MVQ (Silicone rubber)
