N Male Clamp for LMR300 Cable Connector

PN: 50-03-4M20-263

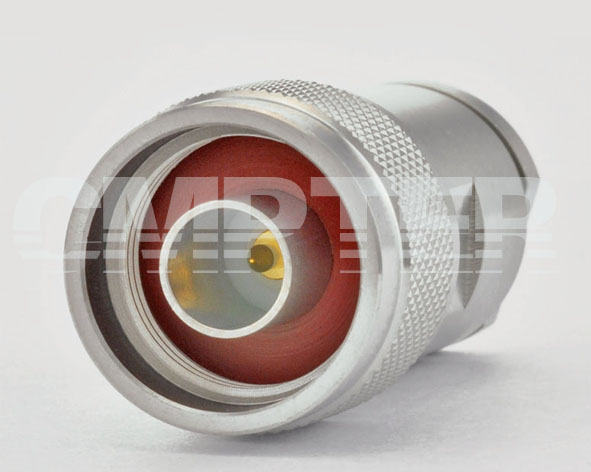

50-03-4M20-263-01

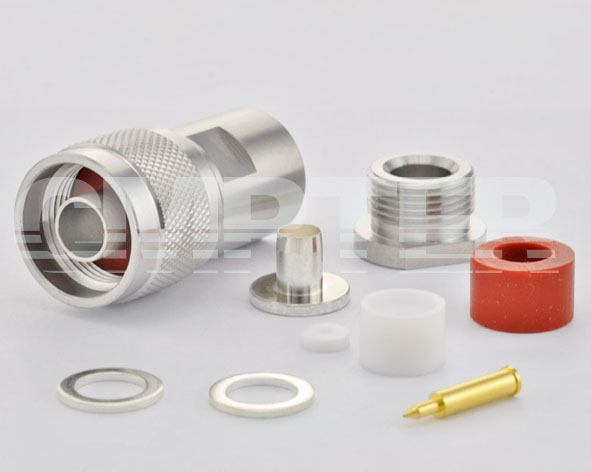

50-03-4M20-263-02
PRODUCT OVERVIEW
Interface Type: N-type
Gender: Male
RoHS Certificate: Compliant
Interface Standards: IEC60169

DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data
Impedance: 50Ohm
Frequency Range: ~ 6GHz
Insulation Resistance: ≥5000MΩ
Withstanding Voltage: 1000V
Temperature Range: -65 °C ~ +165 °C
Weight: 62g
Durability (Matings): >500

Material Data
Piece Part Base Material Plating
Center Contact: Brass Gold plating (Nickel underplated)
Body: Stainless Steel (SU303) Passivated
Coulping Nut: Stainless Steel (SU303) Passivated
Insulator: PTFE

Gasket MVQ (Silicone rubber)
