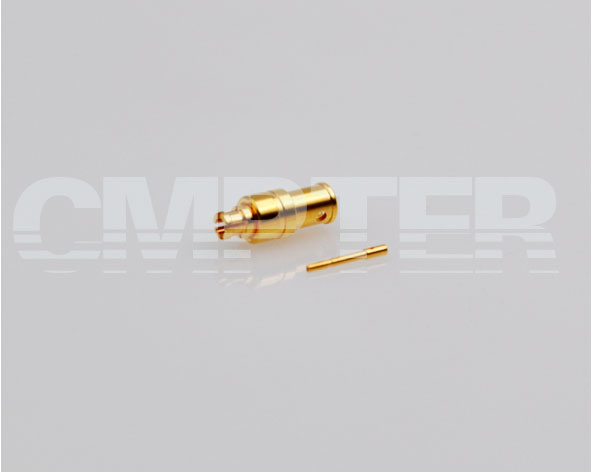

SSMP Straight Female Connector Solder .086/RG405 Cable, DC to 18GHz.

PN: 77-02-2M11-030
SSMP Female Connector
PRODUCT OVERVIEW
Interface Type: SSMP
Gender: Female
RoHS Certificate: Compliant
Interface Standards: MIL-STD-348B

DOWNLOADS
  • Customer Drawing [PDF]
  • Data Sheet [PDF]
    • PRODUCT SPECIFICATIONS
    Technical Data
    Impedance: 50Ohm
    Frequency Range: 0 ~ 18GHz
    Insulation Resistance: ≥5000MΩ
    Temperature Range: -65 °C ~ +165 °C
    Weight: 2g
    Durability (Matings): >500

    Material Data
    Piece Part Base Material Plating
    Center Contact: Beryllium alloy Gold plating (Nickel underplated)
    Body: Brass Gold plating (Nickel underplated)
    Insulator: PTFE
