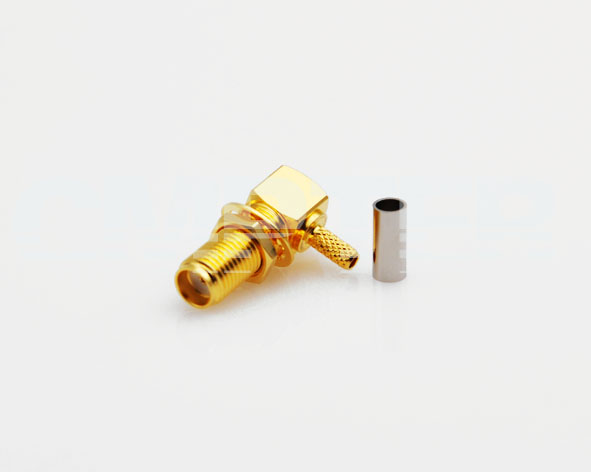

SMA Right Angle Bulkhead Female Connector Crimp for RG174/RG316/LMR100 Cable, DC to 6GHz.5
PRODUCT OVERVIEW
| Interface Type: |
SMA |
| Gender: |
Female |
| RoHS Certificate: |
Compliant |
| Interface Standards: |
IEC-60169 |
DOWNLOADS
PRODUCT SPECIFICATIONS
| Technical Data |
| Impedance: |
50Ohm |
| Frequency Range: |
0 ~ 6GHz |
| Insulation Resistance: |
≥5000MΩ |
| Withstanding Voltage: |
1000V |
| Temperature Range: |
-65 °C ~ +165 °C |
| Weight: |
3g |
| Durability (Matings): |
>500 |
| |
|
| Material Data |
| Piece Part |
Base Material |
Plating |
| Center Contact: |
Beryllium alloy |
Gold plating |
| Body: |
Brass |
Gold plating |
| Fastening Nut |
Brass Gold plated |
Gold plating |
| Washer |
Phosphor Bronze |
Gold plating |
| Insulator: |
PTFE |
