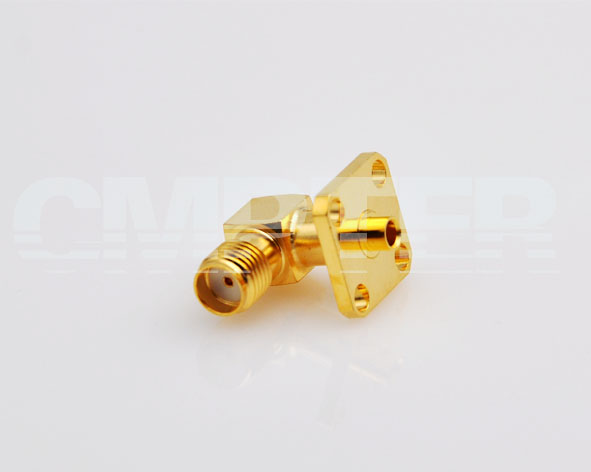

SMA Right Angle Female 4 Hole Flange Mount Connector Solder for RG405 &.086 Cable, DC to 6GHz
PRODUCT OVERVIEW
| Interface Type: |
SMA |
| Gender: |
Female |
| RoHS Certificate: |
Compliant |
| Interface Standards: |
IEC-60169 |
DOWNLOADS
PRODUCT SPECIFICATIONS
| Technical Data |
| Impedance: |
50Ohm |
| Frequency Range: |
0 ~ 6GHz |
| Insulation Resistance: |
≥5000MΩ |
| Withstanding Voltage: |
1000V |
| Temperature Range: |
-65 °C ~ +165 °C |
| Weight: |
6g |
| Durability (Matings): |
>500 |
| |
|
| Material Data |
| Piece Part |
Base Material |
Plating |
| Center Contact: |
Beryllium Copper Alloy |
Gold plating (Nickel underplated) |
| Body: |
Brass |
Gold plating (Nickel underplated) |
| Fastening Nut: |
Brass |
Gold plating (Nickel underplated) |
| Insulator: |
PTFE |
|
