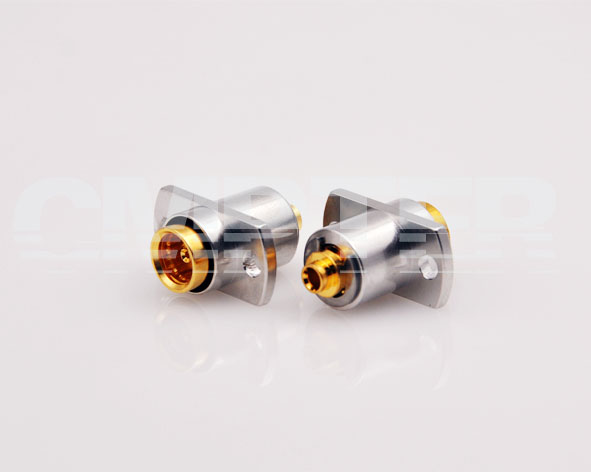

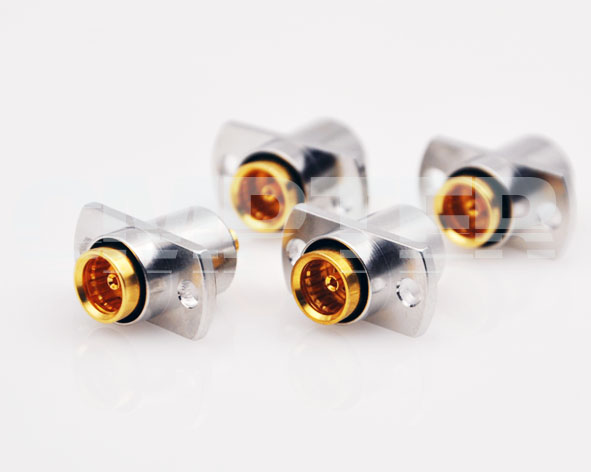

BMA Female Connector Solder .086 & RG405 Cable, 2 Hole Flange, DC to 18GHz.

PN: 68-02-5E11-018
BMA 2 hole flange female solder RG405
BMA connectors
PRODUCT OVERVIEW
Interface Type: BMA
Gender: Female
RoHS Certificate: Compliant
Interface Standards: MIL-STD-348A

DOWNLOADS
  • Customer Drawing [PDF]
    • PRODUCT SPECIFICATIONS
    Technical Data
    Impedance: 50Ohm
    Frequency Range: 0 ~ 18GHz
    Insulation Resistance: ≥5000MΩ
    Withstanding Voltage: 500V
    Temperature Range: -65 °C ~ +165 °C
    Weight: 25g
    Durability (Matings): >500

    Material Data
    Piece Part Base Material Plating
    Center Contact: Beryllium Copper Alloy Gold plating
    Body: Brass Nickel plating
    Flange: Brass Tri-metal plated
    Outer Contact: Beryllium Copper Alloy Gold plating
    Insulator: PTFE
