RF coaxial connectors

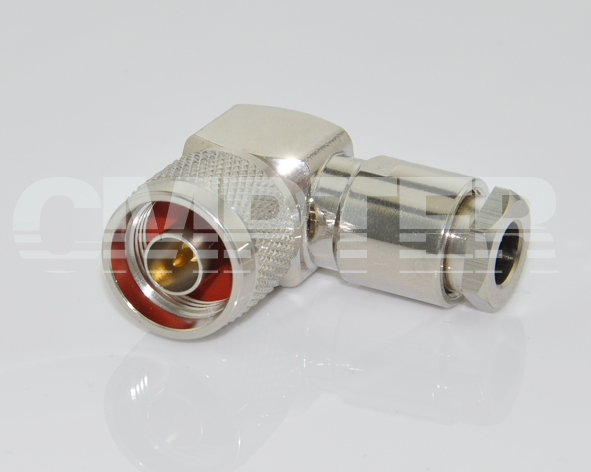

N Right Angle Male Clamp LMR300 Cable

PN: 50-13-4M20-141
50-13-4M20-141-2
PRODUCT OVERVIEW
Interface Type: N-type
Gender: Male
RoHS Certificate: Compliant
Interface Standards: IEC60169

DOWNLOADS
  • Customer Drawing [PDF]
    • PRODUCT SPECIFICATIONS
    Technical Data
    Impedance: 50Ohm
    Frequency Range: 0 ~ 3GHz
    Insulation Resistance: ≥5000MΩ
    Withstanding Voltage: 1000V
    Temperature Range: -65 °C ~ +165 °C
    Weight: 81g
    Durability (Matings): >500

    Material Data
    Piece Part Base Material Plating
    Center Contact: Brass Gold Plating
    Body: Brass Nickel plating
    Coupling Nut: Brass Nickel plating
    Insulator: PTFE

    Gasket MVQ (Silicone rubber)
