PN: 50-03-4M19-143

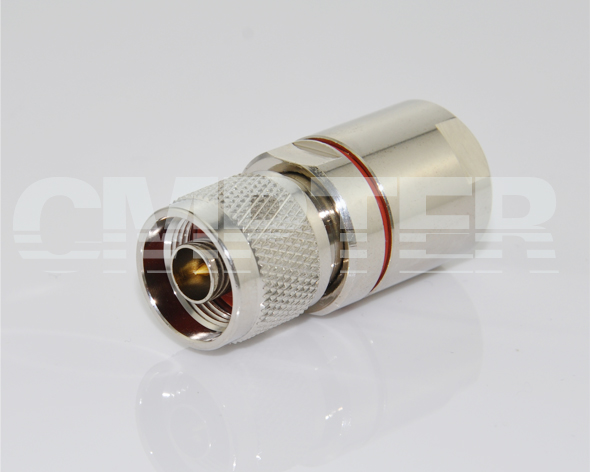

N Straight Male Clamp for LMR600 Cable (Non-Soldered Type)
50-03-4M19-143-2
PRODUCT OVERVIEW
Interface Type: N-type
Gender: Male
RoHS Certificate: Compliant
Interface Standards: IEC60169

DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data
Impedance: 50Ohm
Frequency Range: ~ 3GHz
Insulation Resistance: ≥5000MΩ
Withstanding Voltage: 1000V
Temperature Range: -65 °C ~ +165 °C
Weight: 70g
Durability (Matings): >500

Material Data
Piece Part Base Material Plating
Center Contact: Brass Gold plating (Nickel underplated)
Body: Brass Nickel plating
Coupling Nut: Brass Nickel plating
Insulator: PTFE

Crimp ferrule Copper Nickel plating
Gasket MVQ (Silicone rubber)
