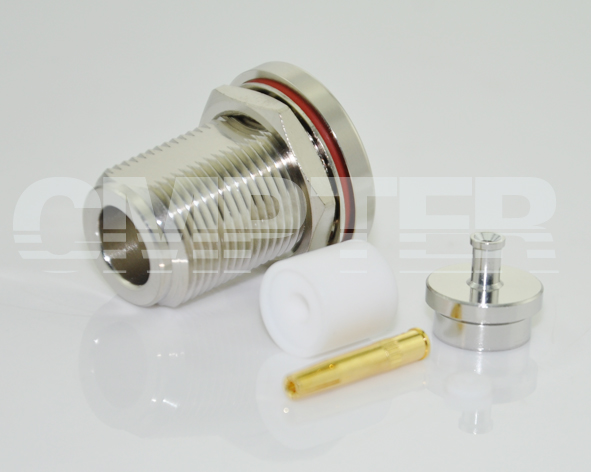

N Bulkhead Waterproof Female Solder 1.32mm/1.37mm Cable
PRODUCT OVERVIEW
Interface Type: |
N-type |
Gender: |
Female |
RoHS Certificate: |
Compliant |
Interface Standards: |
IEC60169 |
DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data |
Impedance: |
50Ohm |
Frequency Range: |
0 ~ 3GHz |
Insulation Resistance: |
≥5000MΩ |
Withstanding Voltage: |
1000V |
Temperature Range: |
-65 °C ~ +165 °C |
Weight: |
37g |
Durability (Matings): |
>500 |
|
|
Material Data |
Piece Part |
Base Material |
Plating |
Center Contact: |
Phosphor Bronze |
Gold plating (Nickel underplated) |
Body: |
Brass |
Nickel plating |
Fastening Nut: |
Brass |
Nickel plating |
Washer |
Phosphor Bronz |
Nickel plating |
Insulator: |
PTFE |
|
Crimp ferrule |
Copper |
Nickel plating |
