PN: 50-02-5L2-201

N Straight Female for PCB Board

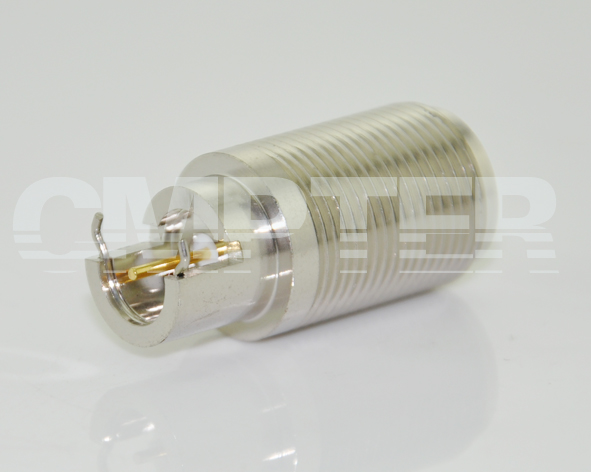

50-02-5L2-201-1

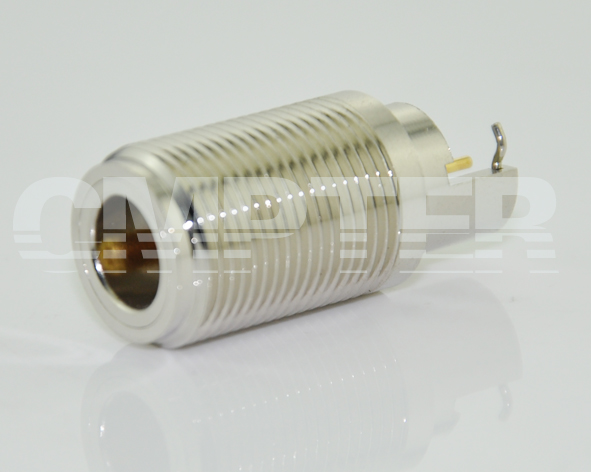

50-02-5L2-201-3
PRODUCT OVERVIEW
Interface Type: N-type
Gender: Female
RoHS Certificate: Compliant
Interface Standards: IEC60169

DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data
Impedance: 50Ohm
Frequency Range: ~ 6GHz
Insulation Resistance: ≥5000MΩ
Withstanding Voltage: 1000V
Temperature Range: -65 °C ~ +165 °C
Weight: 43g
Durability (Matings): >500

Material Data
Piece Part Base Material Plating
Center Contact: Phosphor Bronze Gold plating (Nickel underplated)
Body: Brass Nickel plating
Snap Ring: Brass Nickel plating
Insulator: PTFE
