1.85mm Straight Female, 2 Hole Flange, Accepts Pin

PN: 98-02-9E5-003

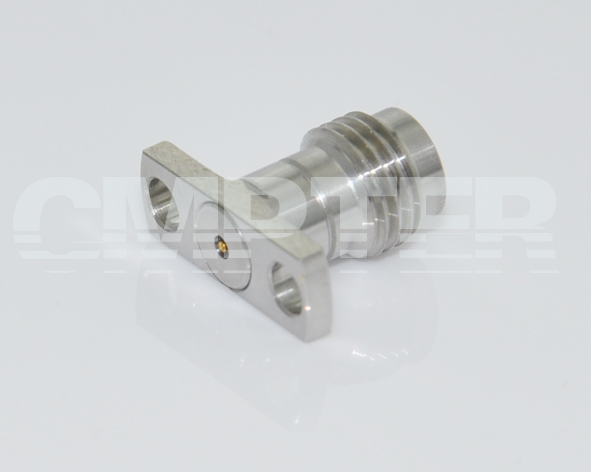

98-02-9E5-003-2
PRODUCT OVERVIEW
Interface Type: 1.85mm
Gender: Female
RoHS Certificate: Compliant
Interface Standards: IEC61169

DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data
Impedance: 50Ohm
Frequency Range: ~ 65GHz
Insulation Resistance: ≥3000MΩ
Contact Resistance -centre contact ≤ 3m
-outer contact ≤ 2.5m
VSWR: ≤ 1.25
Temperature Range: -65 °C ~ +165 °C
Weight: 3g
Durability (Matings): >500

Material Data
Piece Part Base Material Plating
Center Contact: Beryllium Copper Alloy Gold plating (Nickel underplated)
Body: Stainless Steel(SU303) Passivated
Insulator: PEI
