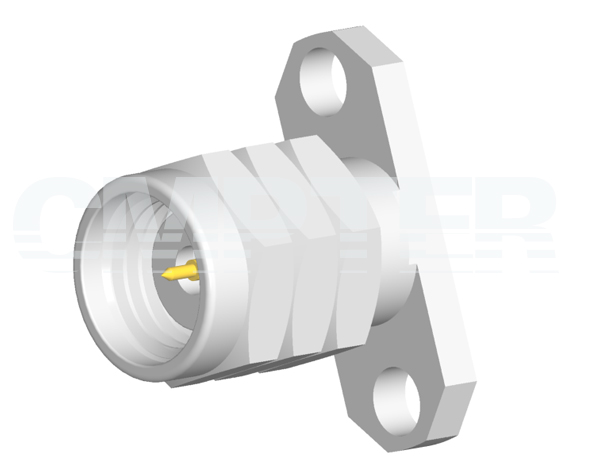

1.85mm Male 2 Hole Flange, Accepts Pin
PRODUCT OVERVIEW
| Interface Type: |
1.85mm |
| Gender: |
Male |
| RoHS Certificate: |
Compliant |
| Interface Standards: |
IEC61169 |
DOWNLOADS
PRODUCT SPECIFICATIONS
| Technical Data |
| Impedance: |
50Ohm |
| Frequency Range: |
0 ~ 65GHz |
| Insulation Resistance: |
≥3000MΩ |
| Contact Resistance |
-centre contact |
≤ 3mΩ |
| -outer contact |
≤ 2.5mΩ |
| VSWR: |
≤ 1.25 |
| Temperature Range: |
-65 °C ~ +165 °C |
| Weight: |
2.8g |
| Durability (Matings): |
>500 |
| |
|
| Material Data |
| Piece Part |
Base Material |
Plating |
| Center Contact: |
Beryllium Copper Alloy |
Gold plating (Nickel underplated) |
| Body: |
Stainless Steel(SU303) |
Passivated |
| Insulator: |
PEI |
|
