RF Coaxial Attenuator

Fixed Attenuator, SMA Male to SMA Female, DC to 18GHz, 5Watts

PN: AT-SMA-18-XX-XXX-3

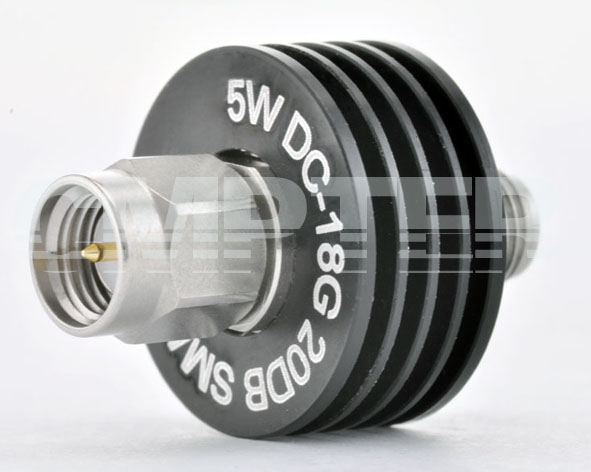

AT-168-02

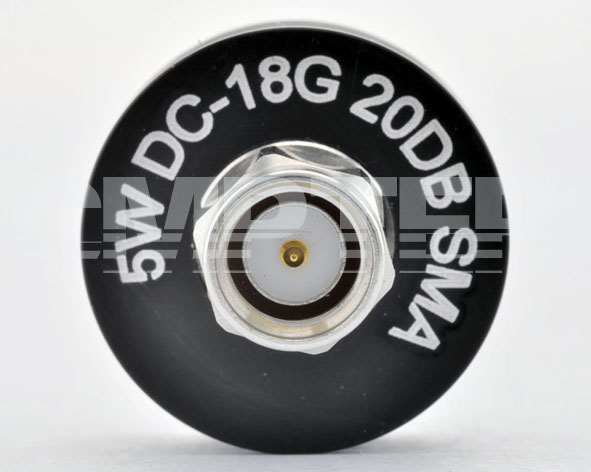

AT-168-03

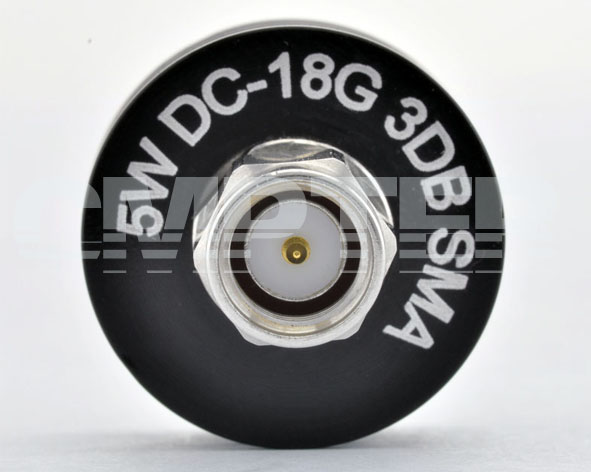

AT-168-05
PRODUCT OVERVIEW
Interface Type: SMA
Gender: SMA Male to SMA Female
Interface Standards: MIL-STD-348A
RoHS: Compliant

DOWNLOADS
  • Customer Drawing [PDF]
    • PRODUCT SPECIFICATIONS
    Technical Data
    Impedance: 50Ohm
    Gender: SMA male to SMA female
    Frequency range: DC to 18 GHz
    VSWR: ≤1.35
    Averange Power: 5 W
    Temperature range:   -55 °C ~ +125 °C
    weight:  30g
    Durability (matings):  >500
    Attenuation Value & Accuracy（dB）:  3dB, 6dB, 10dB, 20dB, 30dB, 40dB, 50dB details please check drawing

    Material Data
    Piece Part Base Material Plating
    Center contact Beryllium Copper Alloy Gold plating (Nickel underplated)
    Body Stainless Steel (SU303) Passivated
    Insulator PTFE
