Fixed Attenuator, SMA male to SMA female DC to 6GHz, 2watts

PN: AT-SMA-06-XX-XXX

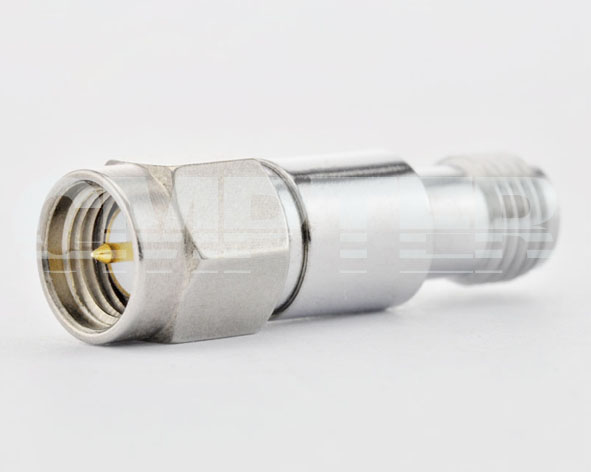

AT-SMA-06-001

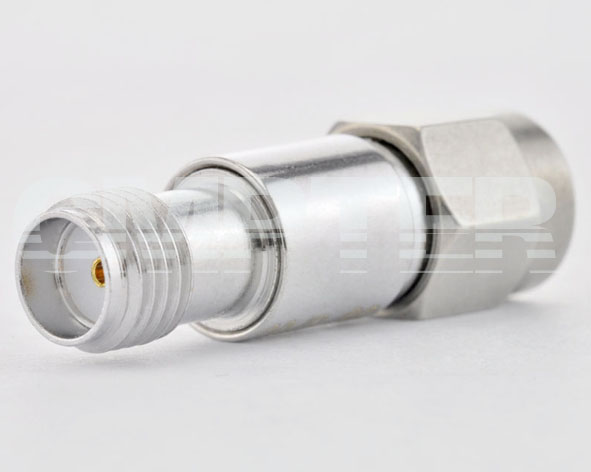

AT-SMA-06-002

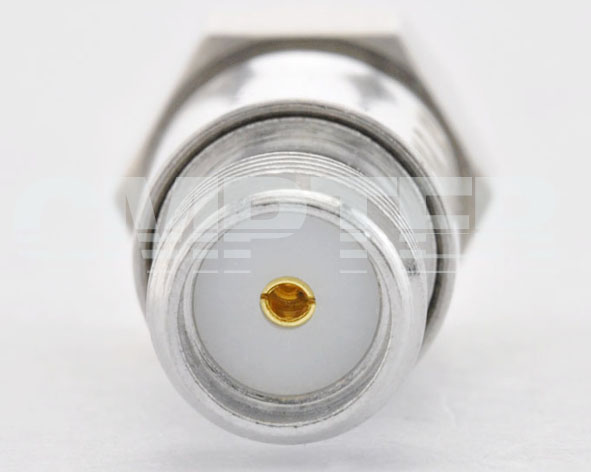

AT-SMA-06-003
PRODUCT OVERVIEW
Interface Type: SMA
Gender: SMA Male to SMA Female
Interface Standards: MIL-STD-348A
RoHS: Compliant

DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data
Impedance: 50Ohm
Gender: SMA male to SMA female
Frequency range: DC to 6 GHz
VSWR: ≤1.30
Averange Power: 2 W
Temperature range:   -55 °C ~ +125 °C
weight:  10g
Durability (matings):  >500
Attenuation Value & Accuracy(dB):  3dB, 6dB, 10dB, 20dB, 30dB, 40dB, 50dB, 60dB details please check drawing

Material Data
Piece Part Base Material Plating
Center contact Brass Gold plating (Nickel underplated)
Body Brass Nickel plated
Insulator PTFE
