RF Coaxial Attenuator

Fixed Attenuator, 150 Watts N Male to N Female Attenuator, DC to 3GHz.

PN: AT-N-3-20-225

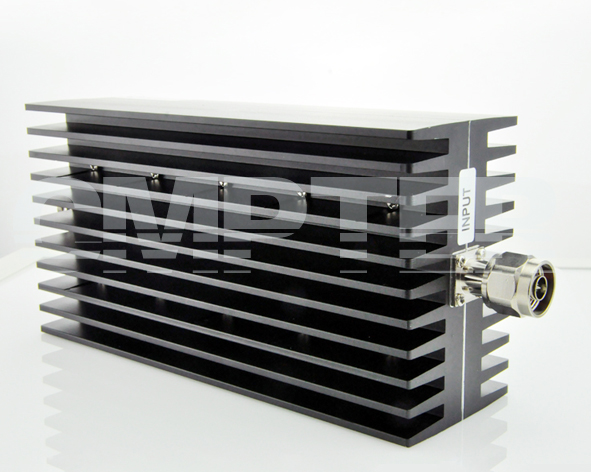

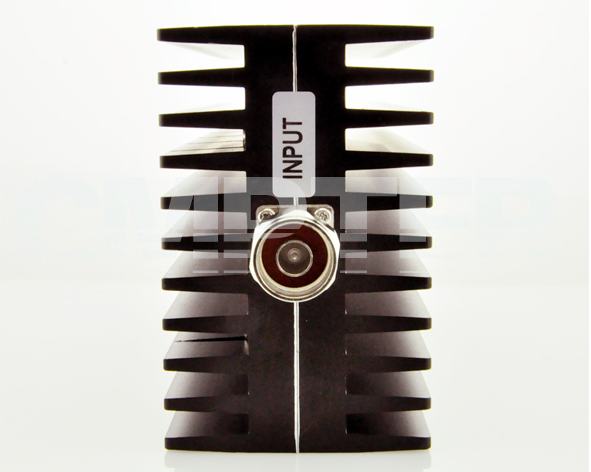

N attenuator 150 watts
150 watts N attenuator
PRODUCT OVERVIEW
Interface Type: N-type
Gender: N Male to N Female
Interface Standards: IEC-60169
RoHS: Compliant

DOWNLOADS
  • Customer Drawing [PDF]
    • PRODUCT SPECIFICATIONS
    Technical Data
    Impedance: 50Ohm
    Gender: N male to N female
    Frequency range: DC to 6 GHz
    VSWR: ≤1.20
    Averange Power: 150 W
    Temperature range:   -55 °C ~ +125 °C
    weight:  2.5KG
    Durability (matings):  >500
    Attenuation Value & Accuracy（dB）:  3dB, 6dB, 10dB, 20dB, 30dB, 40dB, 50dB details please check drawing

    Material Data
    Piece Part Base Material Plating
    Center contact Brass Gold plating (Nickel underplated)
    Body Brass Nickel plated
    Insulator PTFE
